Suitable for factories, scenic spots and campuses Electric four-wheeled patrol cart
Product name : Suitable for factories, scenic spots and campuses Electric four-wheeled patrol cart
Model No. : YS-XL
Price : 5900$/set-5965$/set
Products Category: > EV Golf carts

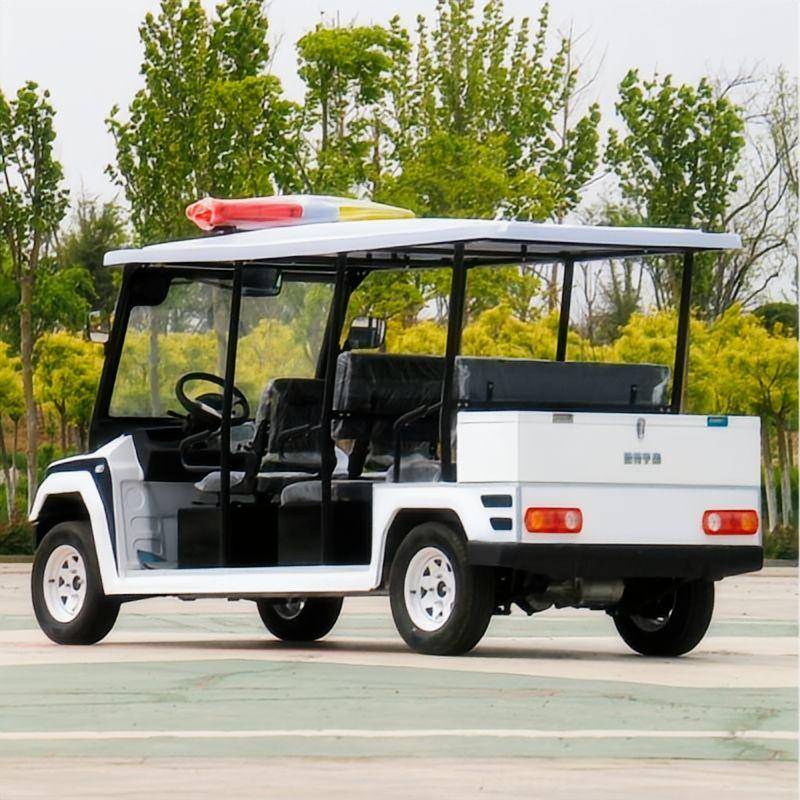

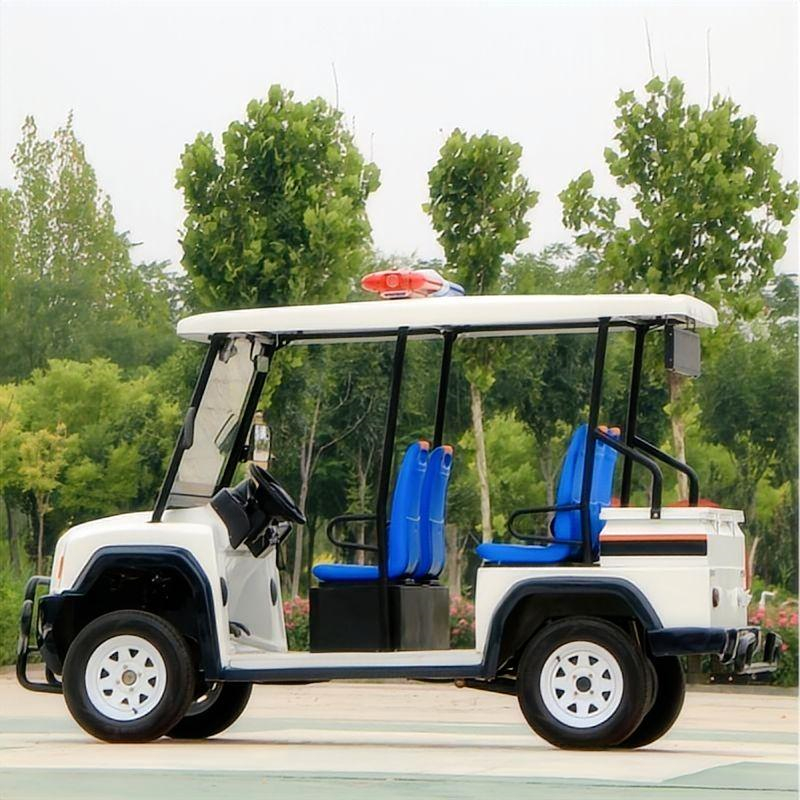

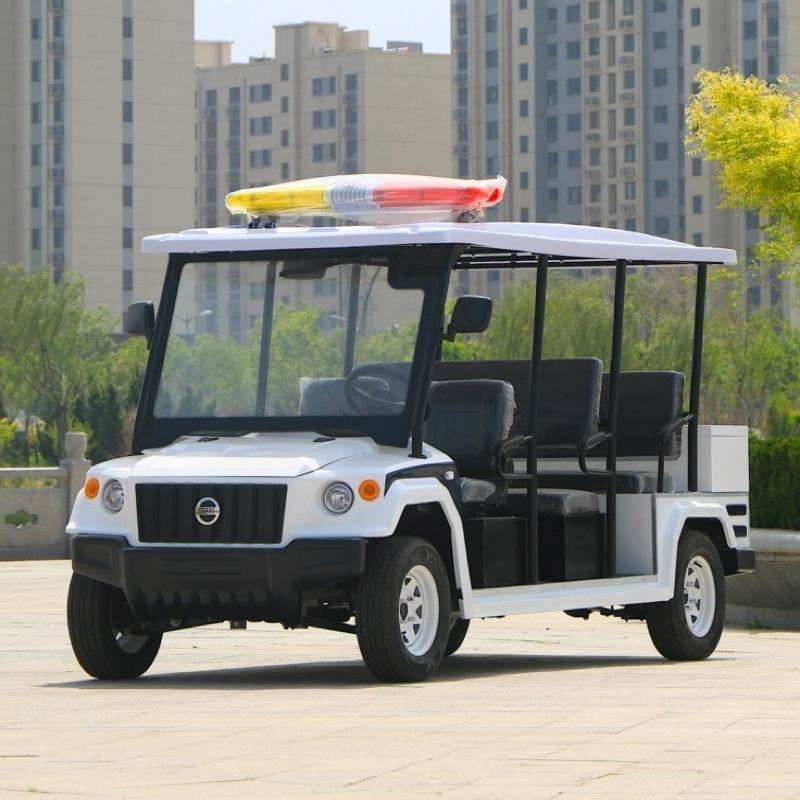

Suitable for factories, scenic spots and campuses Electric four-wheeled patrol cart
This electric patrol vehicle is available in multiple models to accommodate 4-8 people. It offers tiered power configurations (with A/B/C levels for motor power, climbing ability, etc.), customizable range (80-180km), a robust chassis (high-strength materials + fully welded frame), and is equipped with intelligent electronic control, reliable braking and suspension systems. Suitable for patrol and management in various scenarios such as parks, scenic areas, residential communities, and industrial parks, it effectively supports regional security and operations.
| 5 Seats Patrol Vehicle A/B/C Parameter Specification Sheet | ||
| Item | Unit | Parameter |
| External Dimensions | mm | 3150×1490×2100(±10mm) |
| Wheelbase | mm | 2030(±10mm) |
| Track front/rear | mm | 1270/1240(±10mm) |
| Rated passenger capacity | person | 4~5 |
| Curb weight | KG | 780/880/980 |
| Gross vehicle weight | KG | ≥800 |
| Maximum traction | N | 4500/5500/8000 |
| Motor power | KW | 4/5/7.5 |
| Top speed | Km/h | 25~35 |
| Maximum gradeability | 20/25/30 | |
| Battery capacity | Ah | 100(customizable upon request) |
| Tires | Vacuum radial tire (steel wire reinforced tire) | |
| Range | KM | 80~180(customizable range of endurance) |
| Turning radius | MM | ≤4500 |
| Braking distance | MM | ≤4500 |
| Charger | On-board segmented intelligent built-in charger | |
| Electronic control unit | Jetter Henson dedicated tuning controller | |
| Body material | High-strength automotive material + SMC composite material | |
| Frame structure | Steel structure bending, full-welded frame | |
| Front suspension | Link independent suspension (heavy-duty) | |
| Rear axle | Welded rear axle / cast rear axle / cast rear axle | |
| Rear suspension | Rear axle + high-strength steel leaf spring + tube hydraulic shock absorber | |
| Grade assist | Electronic induction hill assist system | |
| Braking system | Front disc and rear drum hydraulic brakes, dual circuit hydraulic braking, parking brake device | |
| Transmission system | Continuously variable transmission system | |
| Seats | Leather fabric high resilience PU sponge filled seat or injection molded waterproof seat (color, style optional) | |
| Lighting and signaling | LED combination front lights, turn signals, combination rear tail lights, brake lights, electric horn | |
| Notes | A/B/C represent: Standard/Standard/High-end configuration differences are marked with 'orange-red' | |
-3767560.jpg)
-4061170.jpg)
-1524152.jpg)
FAQ
1: How to place an order?
A: The procedure is like this:
1). Contact customer service to determine the freight and product model, configuration, quantity and other detailed information
(you can also arrange freight forwarding by yourself);
2). We provide you with a proforma invoice according to your final decision, which contains all product details;
3). You need to arrange 30% of the payment to our bank account, and then we will prepare the product to start production (the
cycle is generally about 10 days, which can be shipped specifically for your order configuration quantity);
4). After the product is completed, the remaining payment is paid, and we arrange forwarder delivery (or we provide relevant
information to arrange forwarder transportation by ourselves).
5).After completing this process, the customer service will track the product location and notify you when it is about to arrive
and when it arrives, so that you can quickly prepare for customs clearance and other related issues.
6). After getting the items, there will be a dedicated after-sales team waiting for your follow-up feedback.
2.What is the warranty?
You can enjoy technical support by phone or email forever.We will provide a prompt solution.We also offer the most convenient and
efficient spare parts support with competitive price.
3.What is the delivery time?
The delivery time is usually within 35 workdays after we received your prepayment.
4.Do you provide customized service?
Yes, we offer customized service as you need for the performance,including special requirements.
5.What is the payment method?
TT 30% as deposit, balance before shipment by TT or L/C at sight.
6. What does your FOB reference price include?
A: FOB price only includes cost. If you do not have your own freight forwarder, please provide us with a port near you
Countries/regions, we will quote CIF prices including shipping costs.
