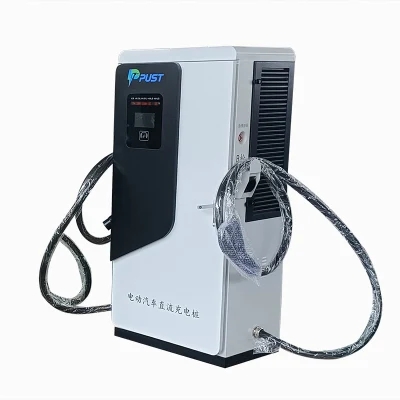

60kw EV DC Fast Charger StationMLH CCS1 CCS2 Gbt Chademo Charging Pile
Product name : 60kw EV DC Fast Charger StationMLH CCS1 CCS2 Gbt Chademo Charging Pile
Model No. : YS23053102
Price : 5100$-5500$
Products Category: > EVs Charging pile
60kw EV DC Fast Charger Station CCS1 CCS2 Gbt Chademo Charging Pile
MODEL | 60KW |
INPUT | |
Nominal Input Voltage | 380 VAC ± 15% |
Acceptable Input Voltage Range | 3-phase, 3ph + N + PE |
Working Voltage Range | 50 - 60 Hz |
Maximum Input Current | 260A |
Frequency Range | <= 5% |
Input Power Factor | > 0.99 @nominal voltage (100% load) |
OUTPUT | |
Output Current Range (based on 2-output) | 2 ~ 250 A |
Output Voltage Range | 200~750VDC (600~750VDC in constant power mode) |
Efficiency | > 94% |
Module Output Current Unbalancce | < 5% |
Module Output Voltage Ripple | < 0.5 |
Module Output Voltage Precision | < 0.5% |
MModule Output Current Precision | < 1% |
Power Distribution | Single plug mode / Average output mode |
PROTECTION | |
Charger Safety Protection | Over/Under voltage, overload, output power limit function, short circuit, anti-access, earth leakage, lightning and overheat |
protection | |
Interface Safety Portection | Circuit discharge function, insulation monitoring device (IMD) and battery reverse parity protection |
USER INTERFACE | |
Status Indiators | Power on, charging and fault |
Communication Protocol | OCPP 1.6 |
Connection Communication Mode | In accordance with DIN 70121 and ISO 15118 standard |
Connection Standard | CCS1, CCS2, CHADEMO, GB/T |
ENVIRONMENT | |
Operating Temperature | -25°C to 50°C |
Humidity | 0 - 95% (non-condensing) |
Altitude | < 2000m |
Noise Level | <65dB |
PHYSICAL | |
IP Protection | IP54 |
Cable Length | 5m |
Dimension, D x W x H (mm) | 750 x 530 x 1685, excluding plug and cable |
Net Weight (kgs) | 310 |
1. Have high voltage charging gun of European standard, American standard and Japanese standard. It can generate different charging configures according to customers' requirements.
2. Modular design, adapt to customers' needs.
3. OCPP communication protocol
4. Have open, shareable data service platform and management platform (cloud platform)
5. Have protection functions such as input under voltage, input overvoltage, output short-circuit, output overvoltage, output overcurrent, battery reverse connection, insulation detection, communication failure, etc.
6. Have an external running indication, which can display the real-time status.
7. Wide range of AC output voltage, high suitability of utility grid, three phase three wire input without null line in the rectifier unit.
8. Has the function of protocol self-recognition, can realize the charging for electric vehicles without limitation of brand.
9. Compatible with coaches and cars charging function.
10. One pile can charge multiple vehicles, and take turns to charge automatically by applying automatic switch function between charging according to the charging power and according to time. It can automatically judge whether the battery is full, one charging pile can meet at least five vehicles charging service task one night.
11. Emergency protection and alarming function, including over voltage, under voltage, over current, over temperature, phase missing, output short-circuit, leakage protection and so on.
12. Charging protection function, the charging process will suspend immediately when BMS communication faults, disconnection, over temperature and over voltage occur.
13. Emergency stop function, the charging process can be suspended immediately by emergency stop switch.
14. Has multiple communication interface such as CAN,RS485/ RS232,Ethernet, 3G wireless networks, which can achieve communication among AC input unit, charging module and DC charging terminal interface, obtain electric vehicle battery system parameters and battery operation parameters during charging process.
15. Has insulation monitoring function, automatically turns off the output to ensure safe charging when insulation level is low.
16. High efficiency, high reliability, ultralow radiation, fast maintenance, flexible capacity expansion, energy efficiency and environmental protection
17. High adaptability of temperature range, has isolated heat dissipation air ducts. Power heat dispassion is separated from control circuit to ensure dust-free of control circuit.
18. Metal closed shell, to prevent from fire.
19. Have display interface which can be customized
